Computer Use Without the Pixels.

A mainframe green screen gives an AI agent more to work with than its appearance suggests. Behind the display are text, field boundaries, and cursor positions that the agent can read directly.

IBM 3270 terminals already exchange this information with the host. The emulator turns it into a screen for a person. We built a TN3270 harness that passes the text and field information to a model, without screenshots or OCR.

Then we compared text and image inputs on six single-step tasks, with three repetitions per task. Both scored 18 out of 18. Text was faster in our runs. The tests covered reading a screen and choosing an action; they did not test a complete workflow.

Getting the live harness to work brought its own problems. A keyboard could unlock before the menu arrived. A password hidden on screen could still be present in the terminal buffer. Those details mattered as much as giving the model readable text.

The work follows our browser automation benchmark. Here, we looked at what an agent can use when the application sits behind a terminal.

1. Reading a 3270 screen

A 3270 terminal operates in block mode. The host writes character data and control orders into a terminal buffer, defining or updating the screen. On a formatted screen, field attributes mark boundaries and control where the operator can type. The terminal holds the buffer locally during input; submitting with ENTER or a program function key typically sends modified fields and the key identifier back to the host.

Fields can be protected or writable, numeric, intensified, or non-displaying. Protected fields contain labels and output. Writable fields accept input. Unformatted screens have no field boundaries, so they need a different input method.

The terminal also exposes keyboard state. After an attention key, input is normally locked until the host restores it. That gives the harness a useful readiness signal, but it does not prove that processing has finished or the expected screen has arrived. We check both keyboard state and screen content.

The useful property is that field boundaries survive transport. The harness can target an input using the host’s screen definition.

2. Choosing an interface

Before building visual automation, check what the application exposes. A supported API is usually the best starting point. Otherwise, use the available screen structure.

API. Use the application’s published operations and response contracts where they cover the task. Check the resulting state as well as the response status.

DOM and accessibility tree. Browser elements expose identities, roles, and values. Our browser automation node uses this structure to act on elements and check the result.

Terminal protocol. TN3270 carries the terminal’s character data and field attributes. A harness can derive input addresses from that data. This serves a similar purpose to browser structure on a different kind of application; it is not inherently a lower tier.

Pixels. Screenshots and visual targeting remain useful when the available connection exposes no usable structure. A Citrix session may impose that constraint, depending on which interfaces the deployment permits you to reach.

3. What we built

The harness exposes five actions to the agent:

fill_field(field_index, value)
  -> write into a field the host declared writable, addressed by index
     formatted screens only

type_text(value, row, col)
  -> type at a position, or at the cursor if row/col are omitted
     the only way to enter anything on an unformatted screen

press_key(key)
  -> ENTER, CLEAR, PF1..PF24, PA1..PA3
     send an attention key; check keyboard state and the resulting screen

wait(seconds)
  -> wait for keyboard unlock; this alone does not confirm the expected screen

done(summary, extracted)
  -> the task is complete, with whatever was asked for

The agent receives the screen after every step as a character grid and field list. It does not need a separate read action. Scripted callers can use read_screen on the HTTP interface.

fill_field works on formatted panels. Our TSO logon screen is unformatted, so login needs type_text, which writes at the cursor or a specified row and column. These are terminal positions, not coordinates inferred from an image.

The harness drives s3270, the scripting engine from the x3270 suite, directly. We needed asynchronous session handling, field attributes, and keyboard state in the same adapter. A synchronous wrapper would need extra handling to avoid blocking other sessions during a read.

The host is Hercules, running MVS 3.8j under TK4-, version 1.00 update 08, MVS PUT 8505. We loaded the ledger fixture through the emulator’s card reader using JCL. The data lives in a dataset on an emulated volume, so the harness exercises the host’s normal storage and terminal paths.

The harness and screen-fingerprinting code are not published. The examples below show their inputs and behavior.

The model interprets abbreviated labels and selects actions. The harness parses the screen and executes those actions. Keeping those responsibilities separate lets us test field addressing independently of model behavior.

4. What the agent actually sees

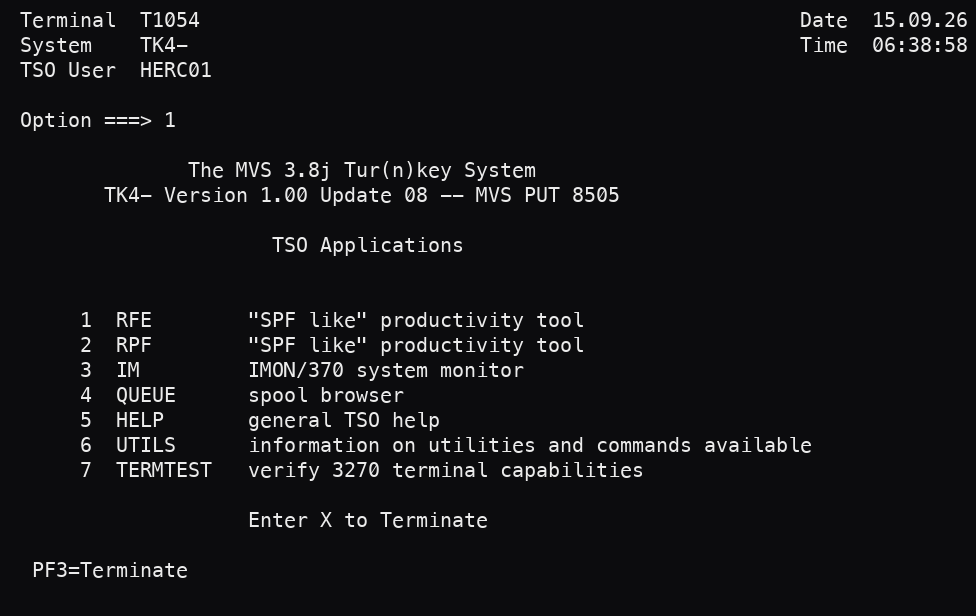

The menu below comes from the fixture host. The image shows what an operator sees; the text block shows what enters the model’s context.

     12345678901234567890123456789012345678901234567890123456789012345678901234567890
  1   Terminal  T1054                                                  Date  15.09.26
  2   System    TK4-                                                   Time  06:38:58
  3   TSO User  HERC01
  4
  5   Option ===> 1
  6
  7                 The MVS 3.8j Tur(n)key System
  8          TK4- Version 1.00 Update 08 -- MVS PUT 8505
  9
 10                        TSO Applications
 11
 12
 13        1  RFE        "SPF like" productivity tool
 14        2  RPF        "SPF like" productivity tool
 15        3  IM         IMON/370 system monitor
 16        4  QUEUE      spool browser
 17        5  HELP       general TSO help
 18        6  UTILS      information on utilities and commands available
 19        7  TERMTEST   verify 3270 terminal capabilities
 20
 21                      Enter X to Terminate
 22
 23    PF3=Terminate
 24

FIELDS: 133 total, 1 writable
  #21 @r5c14 len=1 : '1'
CURSOR: r5c14   KEYBOARD: unlocked   FORMATTED

This panel has 133 fields and only one writable input. The field list saves the model from having to infer which text can be edited.

Asked to open RFE from this menu, the agent returned:

{"action": "press_key", "key": "ENTER",
 "reason": "Option field already contains 1 (RFE), so submitting selects it."}

We expected it to write 1 into field #21 and press ENTER. It noticed that the field already contained 1 and skipped the write. Our first checker rejected this valid action because it required the sequence we had anticipated. We corrected the scoring rule.

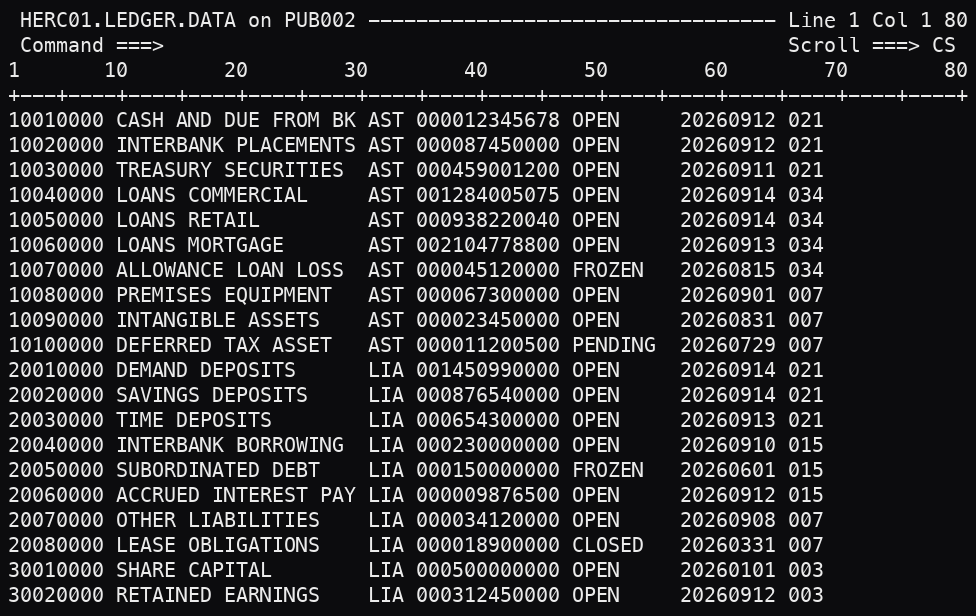

After navigating into RFE and browsing the dataset, the ledger screen looks like this. The text excerpt omits the lower rows.

     12345678901234567890123456789012345678901234567890123456789012345678901234567890
  1   HERC01.LEDGER.DATA on PUB002 ---------------------------------- Line 1 Col 1 80
  2   Command ===>                                                    Scroll ===> CS
  3  1       10        20        30        40        50        60        70        80
  4  +---+----+----+----+----+----+----+----+----+----+----+----+----+----+----+----+
  5  10010000 CASH AND DUE FROM BK AST 000012345678 OPEN     20260912 021
  6  10020000 INTERBANK PLACEMENTS AST 000087450000 OPEN     20260912 021
  7  10030000 TREASURY SECURITIES  AST 000459001200 OPEN     20260911 021
  8  10040000 LOANS COMMERCIAL     AST 001284005075 OPEN     20260914 034
  9  10050000 LOANS RETAIL         AST 000938220040 OPEN     20260914 034
 10  10060000 LOANS MORTGAGE       AST 002104778800 OPEN     20260913 034
 11  10070000 ALLOWANCE LOAN LOSS  AST 000045120000 FROZEN   20260815 034
 12  10080000 PREMISES EQUIPMENT   AST 000067300000 OPEN     20260901 007
 13  10090000 INTANGIBLE ASSETS    AST 000023450000 OPEN     20260831 007
 14  10100000 DEFERRED TAX ASSET   AST 000011200500 PENDING  20260729 007
 15  20010000 DEMAND DEPOSITS      LIA 001450990000 OPEN     20260914 021
 16  20020000 SAVINGS DEPOSITS     LIA 000876540000 OPEN     20260914 021
 ...

FIELDS: 5 total, 2 writable
  #2 @r2c15 len=50    (the command line)
  #4 @r2c78 len=2     (the scroll amount)
CURSOR: r12c44   KEYBOARD: unlocked   FORMATTED

Asked “What is the status of ledger account 1007 0000?”, the agent answers from the grid:

{"action": "done", "summary": "Ledger account 10070000 ALLOWANCE LOAN LOSS has status FROZEN",
 "extracted": {"status": "FROZEN"}}

The ledger records are protected output. The two writable fields are the command line and scroll amount. Fixed columns preserve the record layout without OCR, though the model can still select the wrong row or misinterpret a value.

Field addressing removes visual aiming errors. It still depends on a correct parser and a current screen definition, and the model can choose the wrong field.

Passwords need separate handling. On formatted panels, a non-display attribute hides a field’s contents from view. It does not remove them from the terminal buffer. Our harness filters those values from the screen observations it gives the model. IBM’s data-stream documentation describes this distinction.

Our fixture’s TSO login uses an unformatted screen, so field-based filtering does not apply. In this implementation, the credential reaches the model and is redacted from step history, summaries, reasons, and logs before they are stored. That redaction does not undo model exposure. A login tool that injects credentials outside model context would avoid that exposure.

5. Knowing which screen you are on

Keyboard unlock is useful, but some applications unlock before processing finishes. The x3270 scripting documentation warns about this explicitly. Unlock alone is not a completion check.

Our fixture showed another problem. TSO login displays a broadcast screen, a welcome banner, and a fortune before the menu. The keyboard unlocks between them, and some wait for ENTER. Treating the first unlock as arrival at the menu sends the next command into a banner.

We wait for an expected screen fingerprint: application text at a known position. On this fixture, TSO Applications identifies the menu and REVIEW FRONT END identifies RFE. Keyboard state tells us whether input is available; the fingerprint tells us where we are. Sending ENTER also requires recognizing a prompt that expects it. An unlocked, unchanged screen is not enough.

Labels can help locate fields when a panel moves. For example, finding the writable field after Option ===> is less dependent on an absolute row number. It still needs validation after a panel change: labels, field order, and layout can all change.

A possible next step is to record observed screens, their fingerprints, fields, and transitions in a navigation map. After review, a runner could replay known paths without a model call at each step and request help when a screen fails its checks. One traversal only captures one path; branches, permissions, and error screens need separate coverage.

We have implemented fingerprinting. The map generator and replay compiler are proposed work.

For a write workflow, screen recognition is only part of verification. A confirmation message should be followed by an inquiry that checks the saved value. This extends the rule from our browser benchmark: score the observed result independently of the agent’s summary.

Review also has to resolve application-specific meanings. Labels such as CCTR and values such as AST and LIA need definitions from someone who knows the system. Those definitions belong in the reviewed map and need maintenance as the application changes.

6. What we measured

We evaluated one model on six tasks using two captured screens from the fixture host. Each task had three repetitions. These were single-step reading and action-selection tests, not runs through login, navigation, and a completed transaction.

The tasks covered one menu action, four ledger-cell lookups, and one aggregate over the grid. Expected ledger values came from the JCL deck used to load the fixture. The model was Claude Opus 5 (claude-opus-5).

All 18 text-input trials were correct. Median latency by task ranged from 2.38 to 4.26 seconds; the slowest observed response took 4.72 seconds. Each trial used one model call. Latency was measured at the client on one network path.

We also supplied the same screens as PNGs. Both representations scored 18/18 in the final run. Text was faster on every task in both runs we recorded. This small sample does not establish an accuracy advantage, production reliability, or the reliability of field writes.

The result we did not expect

On a separate customer-account fixture containing names, account numbers, and balances, the model refused extraction requests. Supplying the same screen as an image also produced a refusal.

When we switched to a general ledger fixture with institutional records and no named individuals, the refusals stopped. This let us measure screen reading, but it also changed the evaluation’s scope.

These observations apply to the model and configuration we tested. They do not establish how other models or integrations would behave. A pilot involving customer data should test the intended tasks and authorization context before relying on extraction.

7. Where this could help

The menu example shows the immediate benefit. The harness knows where the writable field is because the host defines it. The model still has to choose the right action, but the harness can place the input without locating a control in an image. That depends on parsing the screen correctly and using its current field definitions.

Text also gives us something convenient to inspect. We can keep a value alongside the screen and position it came from, then search or compare those observations when reviewing a run. Sensitive values still need filtering before they enter the record.

Replaying familiar paths is the next possibility. Once a path has been recorded and reviewed, a runner could handle its routine steps without asking the model what to do each time. We have not built that runner yet. It could reduce repeated model calls, but we would need to measure the savings alongside the work of reviewing and maintaining the paths.

A payment investigation, for example

Consider a hypothetical bank where an investigator uses a terminal to trace payments and has no supported API for the lookup. A customer says a transfer never arrived. The investigator signs in, finds the posting by reference, and reads its value date, amount, status, and cost centre. They copy those details into the case system and draft a reply.

A reviewed replay path could take care of the navigation. At the relevant screen, the agent would read the posting from the character grid, using the row and column layout to find its values. It would still have to select the right record and interpret it correctly. In our ledger fixture, those values are part of the displayed text; they are not individually addressable input fields.

The proposed workflow would copy the values into the case record with their source screen and positions attached. The investigator could check them before approving the reply. The ledger lookup would remain read-only.

We have not tested this workflow or measured how much time it would save. There is also an unresolved problem from our experiment: the model refused extraction from a separate fixture containing names and account numbers. A payment investigation could encounter the same issue, so a pilot would need to test the actual customer-data tasks and their authorization context.

8. Before a production pilot

Start with a bounded read-only task. A lookup or extraction gives you a way to test navigation, permissions, and interpretation against known answers. Include the screens users actually encounter: expired sessions, permission errors, empty results, and prompts between panels.

Keep writes behind explicit checks. A writable field is a terminal property, not permission to change a business record. A write path needs reviewed actions, appropriate authorization, and a check of the saved result. The single-step tests here do not qualify such a path for production.

Plan for host integration work. Getting to the screen took work too. A dataset security product rejected jobs with a four-character message. A catalog volume refused user allocation. TSO sessions held onto a userid until an operator cancelled them. Each of these had to be resolved before the agent could do anything useful.

The next test should follow a task from login to a checked result, with expired sessions, unexpected screens, and other failures introduced along the way. We have shown that the model can read these captured screens and choose a next action from text. Now we need to find out how well the whole system holds up across a complete task.
